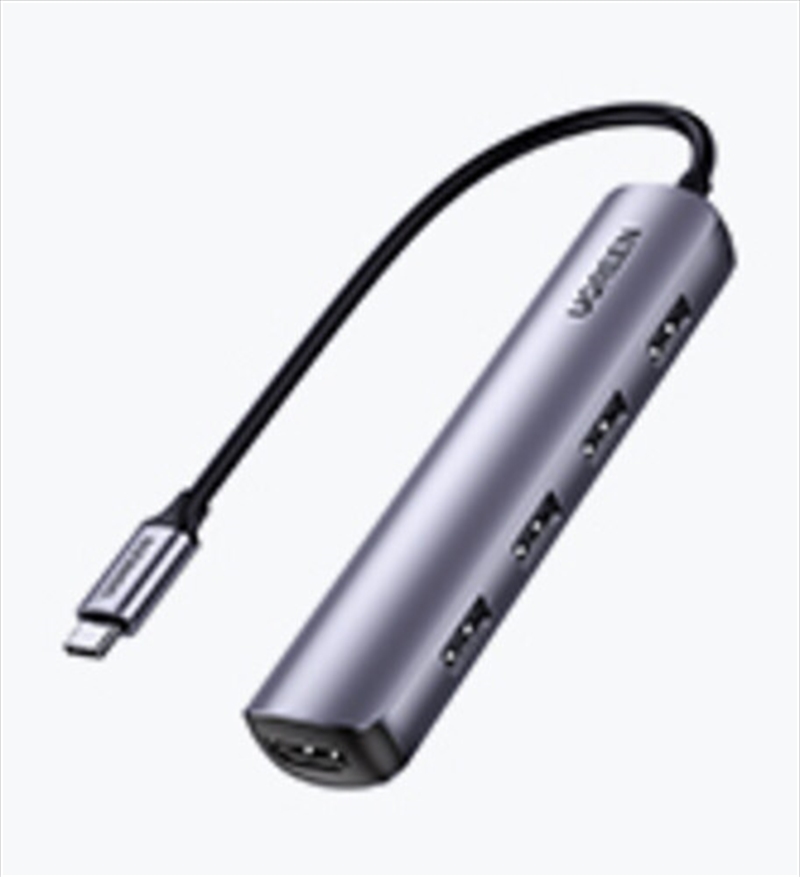

UGREEN USB-C to 4*USB 3.0+HDMI Adapter

Specification:

Input Port and Input Port and Specifications:

• 1xUSB-C Male: Compliant with USB 3.0 standards, with transfer rates up to 5Gbps; DP1.2a, HDCP2.2, supports resolutions up to 3840*2160/30Hz, 2560*1440@60Hz, 1920*1080@120Hz; backward compatible with low resolution, computer connection, data/video functionality

Output Ports and Specifications:

Grid

• 4xUSB3.0 Female: A USB3.0 standard with a transfer rate up to 5Gbps, compatible with USB 2.0/1.1, and supports the BC1.2 protocol via USB-A interface
• 1xHDMI Female: HDMI 1.4b, HDCP 1.4, supports 3D but does not support HDR, supports
• Indicator Light Instructions: None
• Power Requirements: None

Product Power Consumption:

A4: Empty load ˜ 110mA Insert HDMI ˜ 180mA

A5: Empty load ˜ 160 mA, inserted into HDMI ˜ 210 mA

• Video format: RGB 8/10/12 bpc; (YCbCr4:4:4, YCbCr4:2:2) 8/10/12 bpc;
• Audio Format: DTS-HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR);
• Audio sampling rate up to 192kHz/24bit;
• USB ports with a total current limit of 2A for 4 USB 3.0 ports
• Operating temperature: 0°C~45°C
• Storage temperature: -10°C to 50°C
• Measured temperature: Environment 25°C (operating at full load for 12 hours), with the aluminum casing temperature reaching up to around 38°C
• Driver-free installation
• Index Project Content
• Supported Systems: Windows 10/8.1/8/7/Vista/XP; MAC
