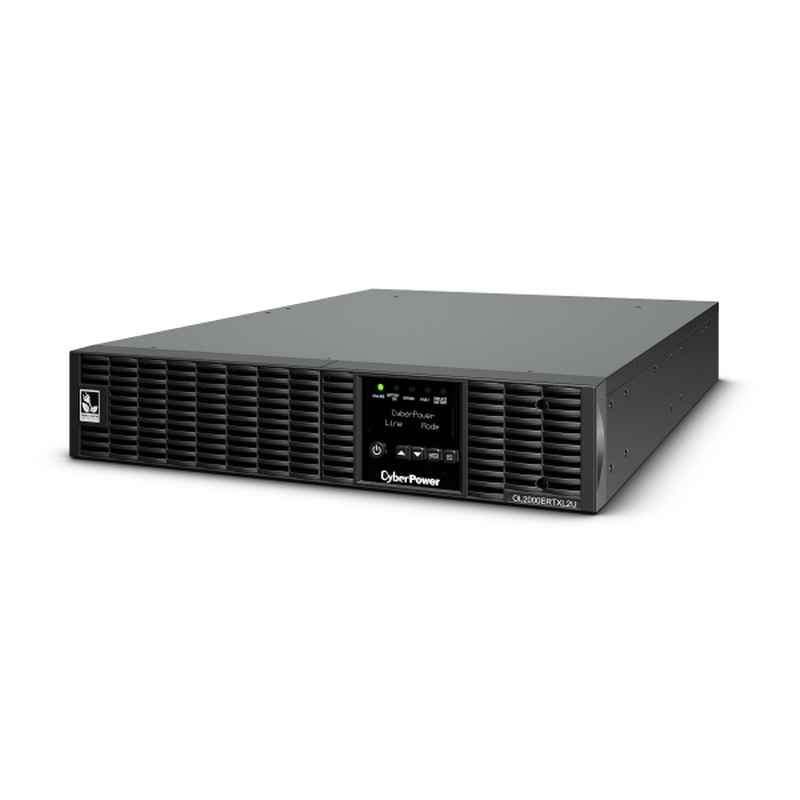

Cyberpower OL2000VA Rack Tower UPS

Specifications:

• Phase: Single Phase
• Form Factor: Rackmount, Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 96%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Input Voltage Range ( Vac ): 190 - 300
• Adjustable Voltage Range ( Vac ): 0-60% Load for 120 - 139 Vac | 0-70% Load for 140 - 159 Vac | 0-80% Load for 160 - 179 Vac | 0-90% Load for 180 - 189 Vac | 0-100% Load for 190 - 300 Vac
• Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Power Factor: 0.99
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: IEC C14 x 1
• Power Cord Length (m): 3
• Output Capacity (Watts): 1800
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
• Output Voltage Setting: Configurable
• On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
• Output Frequency Setting: Configurable
• Power Factor: 0.9
• ECO Mode Voltage Tolerance: ± 10 % | ± 15 %
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
• Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
• Overload Protection (Bypass Mode): Circuit Breaker
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD?3%
• Harmonic Distortion (Non-linear Load): THD?5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet(s) - Total: 9
• Outlet Type: IEC C13 x 8 | IEC C19 x 1
• Outlet(s) - Battery & Surge Protected: 9
• Outlet(s) - Critical Load (CL): 5
• Outlet(s) - Non-Critical Load (NCL): 4
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 20
• Runtime at Full Load ( min ): 6.5
• Typical Recharge Time ( Hours ): 5
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0076
• RBP Quantity ( pcs ): 1
• Battery Quantity (Each RBP) ( pcs ): 6
• Battery Voltage (Each RBP) ( V ): 72
• Compatible Extended Battery Module (EBM): BPE72V60ART2US
• Max. EBM Quantity ( pcs ): 10
• Surge Suppression ( Joules ): 1335
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
• LED Indicators: Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery
• HID Compliant USB Port(s): 1
• Dry Contact (with Relay): Yes
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable ( pcs ): Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Rackmount Rail: Yes
• Rackmount Ears: Yes
• Dimensions: 433 x 88 x 600mm
• Weight: 31kg
• Certifications: CE, BSMI, C-Tick

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Critical/Non-critical Load Outlets
• Smart Battery Management (SBM)
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• ECO Mode
• Overload Protection
• Zero Transfer Time
• Hot-swappable Batteries
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Detachable LCD Panel
• PowerPanel Management Software
• Rack/Tower Convertible Configurations
