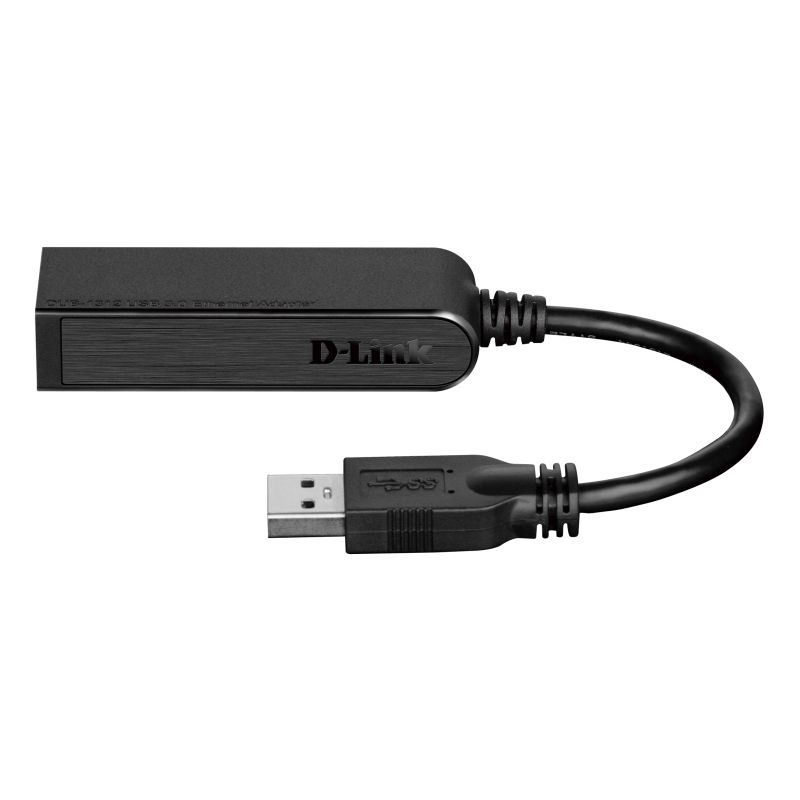

The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter allows you to instantly add gigabit connectivity to your desktop, notebook, or netbook computer.

Features

Achieve transfer speeds of up to 1 Gbps
Status LEDs for connection status and data transfer speed
Simply plug in, install the included software and youre ready to go
No additional hardware installation required, leaving expansion slots free for other uses
Small and compact design makes it easy to take with you wherever you go
Reduces power consumption during times of light traffic, when idle or when the Ethernet cable is unplugged
Supports the built-in power-saving features of the USB 3.0 standard. Especially useful for battery-powered notebook and ultrabook computers.

Description

The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter allows you to instantly add gigabit connectivity to your desktop, notebook, or netbook computer. Just plug the DUB-1312 in to an available USB 3.0 port and youre ready to connect to your switch, hub, or router with the speed and reliability of a wired gigabit connection.

Fast Ethernet Connectivity


The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter plugs into any available USB port on your computer to enable you to connect to an Ethernet network at speeds up to 1 Gbps. High-speed gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device. The adapter eliminates the need to open your computer to install a network card, and it also keeps your computers expansion slots free for other uses.

Easy to Install and Use


The DUB-1312 USB 3.0 to Gigabit Ethernet Adapter connects to your computers USB 3.0 port and is ready to run almost as soon as its plugged in. There is no need to change any configuration settings on your computer, as the drivers are installed automatically after you insert the included installation CD1. For extra convenience, the adapters compact design means you can easily slip the DUB-1312 into your pocket or laptop bag and take it with you.

Energy-saving Functionality


Power to the DUB-1312 is provided directly by the USB port, eliminating the need for an external AC power adapter. The DUB-1312 not only supports the USB 3.0 standards power-saving features, but also includes an energysaving suspend and resume function to minimize power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. This feature is especially useful if you are using a notebook or netbook computer, as it helps conserve battery life, allowing you to keep working for longer without needing to recharge.

Windows operating systems support plug-and-play functionality. Other operating systems may require software installation before the product can be used. Windows XP requires users to confirm before automatic installation can begin.

Technical Specifications

Connectivity

Device Interfaces:

RJ-45 Ethernet Port (10/100/1000 Mbps)
USB Type A Connector

LEDs

Speed (orange)
Link/ACT (green)
Standards
USB Specification Version 3.0
USB Specification Version 2.0
USB Specification Version 1.1
USB Specification Version 1.0
OHCI (Open Host Controller Interface)
EHCI (Enhanced Host Controller Interface)

IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T, TX, and T4 compatible
Supports suspended mode and remote wakeup
Supports full and half duplex in gigabit Ethernet mode

General

Minimum System Requirements
Operating system: Microsoft Windows 8/7/Vista/XP SP3
Mac OS 10.6 to 10.8
Linux kernel 2.6.14x or above

Power Management

Advanced Power Management reduces power usage during idle or light traffic periods

Physical

Dimensions: 74.4 x 21 x 16 mm (2.93 x 0.83 x .063 inches)
Weight: 46.4 grams (1.64 oz)

Power

Input: Bus-powered 500 mA, 5 V DC
Consumption: 150 mA, 3.3 V DC

Temperature

Operating: 0 to 45 C (32 to 113 F)
Storage: -20 to 70 C (-4 to 158 F)

Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 90% non-condensing
